NERD ALERT:

WarpCam® SPECS

WarpCam® 8K PACKAGE INCLUDES


  • Warpcam Body
  • Sensor
  • Lens Kit
  • Lens Filter Kit
  • Monitors
  • Controllers
  • Multiple Mounting Options
  • Wireless Follow Focus

WarpCam® 8K is the tool you bring to a game-changing competition to change the game. With its 8.1K at 75 fps capabilities, full-frame 35mm sensor, and 16-bit color with 14+ stops of dynamic range, this sensor is engineered to impress—with the WarpCam® team.




Sensor

  • Model: Zenmuse X9, also known as X9-8K Air
  • Sensor: 35.4 Megapixel full-frame sensor
  • Color Depth: 16-bit color

Processing System

  • CineCore 3.0

Recording Capabilities

  • Up to 8K/25fps in CinemaDNG video
  • Up to 8K/75fps in ProRes RAW, no cropping
  • Up to 4K/120fps ProRes RAW  no cropping

Dual Native ISO

  • EI 800/4000 (up to 29.97p)
  • changes to EI 320/1600 for frame rates above 29.97p

EI Range

  • EI 200 to 12800

Dynamic Range

  • 14+ stops

Lens & Mount

  • DL lens mount, also compatible with Leica M mount and Sony E mount
  • Carbon fiber  lenses 16, 18, 24, 35, and 50mm lenses, as well as a 9mm ultrawide

Additional Features


  • Proprietary Chip for advanced processing and high-performance computing
  • Cinema Color System (DCCS) for authentic colors and effortless color matching with other cinema cameras like the Alexa Mini or Sony Venice
  • Tilt Boost or 360° Pan Dual Configurations
  • Timecode Sync: Multi-Camera Timecode Sync through the 3.5mm port on WarpCam

Storage


  • PROSSD 1TB with write speed up to 1100MBps and read speed up to 900MBps
  • USB-C cable for easy file sharing without card reader

Video Transmission System

  • O3 Pro

Live View Quality

  • 1080p/60fps, 4K/30fps
  • Max Live Video Bitrate: 50 Mbps

Max Transmission Distance


Single Control Mode (Ideal Line of Sight)

  • 1080p/60fps Live Feeds, FCC: Approx. 13 km CE/SRRC/MIC: Approx. 7 km
  • 4K/30fps Live Feeds, FCC: Approx. 5 km CE/SRRC/MIC: Approx. 3 km

Dual-Control Mode (Ideal Line of Sight)

  • 1080p/60fps Live Feeds: FCC: Approx. 11.2 km CE/SRRC/MIC: Approx. 5.6 km
  • 4K/30fps Live Feeds: FCC: Approx. 4 km CE/SRRC/MIC: Approx. 2.4 km

Lowest Latency

  •  90 ms

Operating Frequency

  • 2.4000-2.4835 GHz
  • 5.150-5.250 GHz (CE: 5.170-5.250 GHz)
  • 5.725-5.850 GHz

Transmitter Power (EIRP)

  • 2.4 GHz: FCC: <33 dBm, CE/SRRC/MIC: <20 dBm
  • 5.1 GHz: CE: <23 dBm
  • 5.8 GHz: FCC: <33 dBm
  • SRRC: <30 dBm
  • CE: <14 dBm



Grab your calculators and put on your pocket protectors, folks—here's the WarpCam® recording modes rundown you've been secretly geeking out about:



Full Frame - 8.1K (8192 x 4320) 17:09

  • Full Frame | 8.1K (8192 x 4320) | 17:09 | ProRes RAW | 59.94p | 4.5 Gb/s | 12 bit | MOV | PROSSD | 32 min
  • Full Frame | 8.1K (8192 x 4320) | 17:09 | ProRes RAW | 50p | 3.7 Gb/s | 12 bit | MOV | PROSSD | 38 min
  • Full Frame | 8.1K (8192 x 4320) | 17:09 | ProRes RAW | 48p | 3.6 Gb/s | 12 bit | MOV | PROSSD | 40 min
  • Full Frame | 8.1K (8192 x 4320) | 17:09 | ProRes RAW | 29.97p | 2.2 Gb/s | 12 bit | MOV | PROSSD | 64 min
  • Full Frame | 8.1K (8192 x 4320) | 17:09 | ProRes RAW | 25p | 1.9 Gb/s | 12 bit | MOV | PROSSD | 77 min
  • Full Frame | 8.1K (8192 x 4320) | 17:09 | ProRes RAW | 24p | 1.8 Gb/s | 12 bit | MOV | PROSSD | 80 min
  • Full Frame | 8.1K (8192 x 4320) | 17:09 | ProRes RAW | 23.98p | 1.8 Gb/s | 12 bit | MOV | PROSSD | 80 min
  • Full Frame | 8.1K (8192 x 4320) | 17:09 | CinemaDNG | 25p | 7.4 Gb/s | 16 bit | DNG | PROSSD | 19 min
  • Full Frame | 8.1K (8192 x 4320) | 17:09 | CinemaDNG | 24p | 7.1 Gb/s | 16 bit | DNG | PROSSD | 20 min
  • Full Frame | 8.1K (8192 x 4320) | 17:09 | CinemaDNG | 23.98p | 7.1 Gb/s | 16 bit | DNG | PROSSD | 20 min
  • Full Frame | 8.1K (8192 x 4320) | 17:09 | ProRes HQ | 29.97p | 4 Gb/s | 10 bit | MOV | PROSSD | 36 min
  • Full Frame | 8.1K (8192 x 4320) | 17:09 | ProRes HQ | 25p | 3.3 Gb/s | 10 bit |MOV | PROSSD | 43 min
  • Full Frame | 8.1K (8192 x 4320) | 17:09 | ProRes HQ | 24p | 3.2 Gb/s | 10 bit | MOV | PROSSD | 45 min
  • Full Frame | 8.1K (8192 x 4320) | 17:09 | ProRes HQ | 23.98p | 3.2 Gb/s | 10 bit | MOV | PROSSD | 45 min

Full Frame - 8K UHD (7680 x 4320) 16:09

  • Full Frame | 8K UHD (7680 x 4320) | 16:09 | ProRes RAW | 59.94p | 4.2 Gb/s | 12 bit | MOV | PROSSD | 34 min
  • Full Frame | 8K UHD (7680 x 4320) | 16:09 | ProRes RAW | 50p | 3.5 Gb/s | 12 bit | MOV | PROSSD | 41 min
  • Full Frame | 8K UHD (7680 x 4320) | 16:09 | ProRes RAW | 48p | 3.3 Gb/s | 12 bit | MOV | PROSSD | 43 min
  • Full Frame | 8K UHD (7680 x 4320) | 16:09 | ProRes RAW | 29.97p | 2.1 Gb/s | 12 bit | MOV | PROSSD | 68 min
  • Full Frame | 8K UHD (7680 x 4320) | 16:09 | ProRes RAW | 25p | 3.5 Gb/s | 12 bit | MOV | PROSSD | 41 min
  • Full Frame | 8K UHD (7680 x 4320) | 16:09 | ProRes RAW | 24p | 3.3 Gb/s | 12 bit | MOV | PROSSD | 43 min
  • Full Frame | 8K UHD (7680 x 4320) | 16:09 | ProRes RAW | 23.98p | 3.3 Gb/s | 12 bit | MOV | PROSSD | 43 min
  • Full Frame | 8K UHD (7680 x 4320) | 16:09 | ProRes HQ | 29.97p | 3.7 Gb/s | 10 bit | MOV | PROSSD | 38 min
  • Full Frame | 8K UHD (7680 x 4320) | 16:09 | ProRes HQ | 25p | 3.3 Gb/s | 10 bit | MOV | PROSSD | 46 min
  • Full Frame | 8K UHD (7680 x 4320) | 16:09 | ProRes HQ | 24p | 3 Gb/s | 10 bit | MOV | PROSSD | 48 min
  • Full Frame | 8K UHD (7680 x 4320) | 16:09 | ProRes HQ | 23.98p | 3 Gb/s | 10 bit | MOV | PROSSD | 48 min

Full Frame - 8.1K (8192 x 3424) 2.39:1

  • Full Frame | 8.1K (8192 x 3424) | 2.39:1 | ProRes RAW | 75p | 4.4 Gb/s | 12 bit | MOV | PROSSD | 32 min
  • Full Frame | 8.1K (8192 x 3424) | 2.39:1 | ProRes RAW | 72p | 4.2 Gb/s | 12 bit | MOV | PROSSD | 34 min

Full Frame - 4.1K (4096 x 2160) 17:09

  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes RAW 119.88p 2.2 Gb/s 12 bit MOV PROSSD 64 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes RAW 100p 3.7 Gb/s 12 bit MOV PROSSD 38 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes RAW 59.94p 2.2 Gb/s 12 bit MOV PROSSD 64 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes RAW 50p 1.9 Gb/s 12 bit MOV PROSSD 77 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes RAW 48p 1.8 Gb/s 12 bit MOV PROSSD 80 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes RAW 29.97p 1.1 Gb/s 12 bit MOV PROSSD 128 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes RAW 25p 931 Mb/s 12 bit MOV PROSSD 154 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes RAW 24p 889 Mb/s 12 bit MOV PROSSD 160 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes RAW 23.98p 889 Mb/s 12 bit MOV PROSSD 160 min
  • Full Frame 4.1K (4096 x 2160) 17:09 CinemaDNG 100p 7.4 Gb/s 16 bit DNG PROSSD 19 min
  • Full Frame 4.1K (4096 x 2160) 17:09 CinemaDNG 59.94p 4.5 Gb/s 16 bit DNG PROSSD 32 min
  • Full Frame 4.1K (4096 x 2160) 17:09 CinemaDNG 50p 3.7 Gb/s 16 bit DNG PROSSD 38 min
  • Full Frame 4.1K (4096 x 2160) 17:09 CinemaDNG 48p 3.6 Gb/s 16 bit DNG PROSSD 40 min
  • Full Frame 4.1K (4096 x 2160) 17:09 CinemaDNG 29.97p 2.2 Gb/s 16 bit DNG PROSSD 64 min
  • Full Frame 4.1K (4096 x 2160) 17:09 CinemaDNG 25p 1.9 Gb/s 16 bit DNG PROSSD 77 min
  • Full Frame 4.1K (4096 x 2160) 17:09 CinemaDNG 24p 1.8 Gb/s 16 bit DNG PROSSD 80 min
  • Full Frame 4.1K (4096 x 2160) 17:09 CinemaDNG 23.98p 1.8 Gb/s 16 bit DNG PROSSD 80 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes HQ 119.88p 4 Gb/s 10 bit MOV PROSSD 36 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes HQ 100p 3.7 Gb/s 10 bit MOV PROSSD 43 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes HQ 59.94p 2 Gb/s 10 bit MOV PROSSD 72 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes HQ 50p 1.7 Gb/s 10 bit MOV PROSSD 87 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes HQ 48p 1.6 Gb/s 10 bit MOV PROSSD 90 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes HQ 29.97p 990 Mb/s 10 bit MOV PROSSD 144 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes HQ 25p 822 Mb/s 10 bit MOV PROSSD 173 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes HQ 24p 789 Mb/s 10 bit MOV PROSSD 180 min
  • Full Frame 4.1K (4096 x 2160) 17:09 ProRes HQ 23.98p 789 Mb/s 10 bit MOV PROSSD 180 min
  • Full Frame 4.1K (4096 x 2160) 17:09 H.264 119.88p 319 Mb/s 10 bit MOV PROSSD 453 min
  • Full Frame 4.1K (4096 x 2160) 17:09 H.264 100p 319 Mb/s 10 bit MOV PROSSD 544 min
  • Full Frame 4.1K (4096 x 2160) 17:09 H.264 59.94p 218 Mb/s 10 bit MOV PROSSD 648 min
  • Full Frame 4.1K (4096 x 2160) 17:09 H.264 50p 218 Mb/s 10 bit MOV PROSSD 777 min
  • Full Frame 4.1K (4096 x 2160) 17:09 H.264 48p 218 Mb/s 10 bit MOV PROSSD 809 min
  • Full Frame 4.1K (4096 x 2160) 17:09 H.264 29.97p 159 Mb/s 10 bit MOV PROSSD 907 min
  • Full Frame 4.1K (4096 x 2160) 17:09 H.264 25p 159 Mb/s 10 bit MOV PROSSD 1088 min
  • Full Frame 4.1K (4096 x 2160) 17:09 H.264 24p 159 Mb/s 10 bit MOV PROSSD 1133 min
  • Full Frame 4.1K (4096 x 2160) 17:09 H.264 23.98p 159 Mb/s 10 bit MOV PROSSD 1135 min
  • Super 35 4.1K (4096 x 2160) 17:09 ProRes HQ 59.94p 2 Gb/s 10 bit MOV PROSSD 72 min
  • Super 35 4.1K (4096 x 2160) 17:09 ProRes HQ 50p 1.7 Gb/s 10 bit MOV PROSSD 87 min
  • Super 35 4.1K (4096 x 2160) 17:09 ProRes HQ 48p 1.6 Gb/s 10 bit MOV PROSSD 90 min
  • Super 35 4.1K (4096 x 2160) 17:09 ProRes HQ 29.97p 990 Mb/s 10 bit MOV PROSSD 144 min
  • Super 35 4.1K (4096 x 2160) 17:09 ProRes HQ 25p 822 Mb/s 10 bit MOV PROSSD 173 min
  • Super 35 4.1K (4096 x 2160) 17:09 ProRes HQ 24p 789 Mb/s 10 bit MOV PROSSD 180 min
  • Super 35 4.1K (4096 x 2160) 17:09 ProRes HQ 23.98p 789 Mb/s 10 bit MOV PROSSD 180 min
  • Super 35 4.1K (4096 x 2160) 17:09 H.264 59.94p 218 Mb/s 10 bit MOV PROSSD 648 min
  • Super 35 4.1K (4096 x 2160) 17:09 H.264 50p 218 Mb/s 10 bit MOV PROSSD 777 min
  • Super 35 4.1K (4096 x 2160) 17:09 H.264 48p 218 Mb/s 10 bit MOV PROSSD 809 min
  • Super 35 4.1K (4096 x 2160) 17:09 H.264 29.97p 159 Mb/s 10 bit MOV PROSSD 907 min
  • Super 35 4.1K (4096 x 2160) 17:09 H.264 25p 159 Mb/s 10 bit MOV PROSSD 1088 min
  • Super 35 4.1K (4096 x 2160) 17:09 H.264 24p 159 Mb/s 10 bit MOV PROSSD 1133 min
  • Super 35 4.1K (4096 x 2160) 17:09 H.264 23.98p 159 Mb/s 10 bit MOV PROSSD 1135 min

4K UHD (3840 x 2160) 16:09

  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes RAW 119.88p 2.1 Gb/s 12 bit MOV PROSSD 68 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes RAW 100p 3.5 Gb/s 12 bit MOV PROSSD 41 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes RAW 59.94p 2.1 Gb/s 12 bit MOV PROSSD 68 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes RAW 50p 1.7 Gb/s 12 bit MOV PROSSD 82 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes RAW 48p 1.7 Gb/s 12 bit MOV PROSSD 85 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes RAW 29.97p 1 Gb/s 12 bit MOV PROSSD 137 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes RAW 25p 872 Mb/s 12 bit MOV PROSSD 164 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes RAW 24p 839 Mb/s 12 bit MOV PROSSD 171 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes RAW 23.98p 839 Mb/s 12 bit MOV PROSSD 171 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 CinemaDNG 100p 7 Gb/s 16 bit DNG PROSSD 20 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 CinemaDNG 59.94p 4.2 Gb/s 16 bit DNG PROSSD 34 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 CinemaDNG 50p 3.5 Gb/s 16 bit DNG PROSSD 41 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 CinemaDNG 48p 3.4 Gb/s 16 bit DNG PROSSD 43 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 CinemaDNG 29.97p 2.1 Gb/s 16 bit DNG PROSSD 68 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 CinemaDNG 25p 1.7 Gb/s 16 bit DNG PROSSD 82 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 CinemaDNG 24p 1.7 Gb/s 16 bit DNG PROSSD 85 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 CinemaDNG 23.98p 1.7 Gb/s 16 bit DNG PROSSD 85 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes HQ 119.88p 3.7 Gb/s 10 bit MOV PROSSD 38 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes HQ 100p 3.1 Gb/s 10 bit MOV PROSSD 46 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes HQ 59.94p 1.9 Gb/s 10 bit MOV PROSSD 77 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes HQ 50p 1.5 Gb/s 10 bit MOV PROSSD 92 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes HQ 48p 1.5 Gb/s 10 bit MOV PROSSD 96 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes HQ 29.97p 931 Mb/s 10 bit MOV PROSSD 154 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes HQ 25p 772 Mb/s 10 bit MOV PROSSD 185 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes HQ 24p 738 Mb/s 10 bit MOV PROSSD 192 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 ProRes HQ 23.98p 738 Mb/s 10 bit MOV PROSSD 193 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 H.264 119.88p 319 Mb/s 10 bit MOV PROSSD 453 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 H.264 100p 319 Mb/s 10 bit MOV PROSSD 544 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 H.264 59.94p 218 Mb/s 10 bit MOV PROSSD 648 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 H.264 50p 218 Mb/s 10 bit MOV PROSSD 777 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 H.264 48p 218 Mb/s 10 bit MOV PROSSD 809 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 H.264 29.97p 159 Mb/s 10 bit MOV PROSSD 907 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 H.264 25p 159 Mb/s 10 bit MOV PROSSD 1088 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 H.264 24p 159 Mb/s 10 bit MOV PROSSD 1133 min
  • Full Frame 4K UHD (3840 x 2160) 16:09 H.264 23.98p 159 Mb/s 10 bit MOV PROSSD 1135 min
  • Super 35 4K UHD (3840 x 2160) 16:09 ProRes HQ 59.94p 1.9 Gb/s 10 bit MOV PROSSD 77 min
  • Super 35 4K UHD (3840 x 2160) 16:09 ProRes HQ 50p 1.5 Gb/s 10 bit MOV PROSSD 92 min
  • Super 35 4K UHD (3840 x 2160) 16:09 ProRes HQ 48p 1.5 Gb/s 10 bit MOV PROSSD 96 min
  • Super 35 4K UHD (3840 x 2160) 16:09 ProRes HQ 29.97p 931 Mb/s 10 bit MOV PROSSD 154 min
  • Super 35 4K UHD (3840 x 2160) 16:09 ProRes HQ 25p 772 Mb/s 10 bit MOV PROSSD 185 min
  • Super 35 4K UHD (3840 x 2160) 16:09 ProRes HQ 24p 738 Mb/s 10 bit MOV PROSSD 192 min
  • Super 35 4K UHD (3840 x 2160) 16:09 ProRes HQ 23.98p 738 Mb/s 10 bit MOV PROSSD 193 min
  • Super 35 4K UHD (3840 x 2160) 16:09 H.264 59.94p 218 Mb/s 10 bit MOV PROSSD 648 min
  • Super 35 4K UHD (3840 x 2160) 16:09 H.264 50p 218 Mb/s 10 bit MOV PROSSD 777 min
  • Super 35 4K UHD (3840 x 2160) 16:09 H.264 48p 218 Mb/s 10 bit MOV PROSSD 809 min
  • Super 35 4K UHD (3840 x 2160) 16:09 H.264 29.97p 159 Mb/s 10 bit MOV PROSSD 907 min
  • Super 35 4K UHD (3840 x 2160) 16:09 H.264 25p 159 Mb/s 10 bit MOV PROSSD 1088 min
  • Super 35 4K UHD (3840 x 2160) 16:09 H.264 24p 159 Mb/s 10 bit MOV PROSSD 1133 min
  • Super 35 4K UHD (3840 x 2160) 16:09 H.264 23.98p 159 Mb/s 10 bit MOV PROSSD 1135 min

8K (8192 x 3424) 2.39:1

  • Full Frame 8K (8192 x 3424) 2.39:1 CinemaDNG 25p 7 Gb/s 16 bit DNG PROSSD 21 min
  • Full Frame 8K (8192 x 3424) 2.39:1 CinemaDNG 24p 6.7 Gb/s 16 bit DNG PROSSD 21 min
  • Full Frame 8K (8192 x 3424) 2.39:1 CinemaDNG 23.98p 6.7 Gb/s 16 bit DNG PROSSD 21 min

5.5K (5568 x 2952) 17:09

  • Super 35 5.5K (5568 x 2952) 17:09 ProRes RAW 59.94p 4.1 Gb/s 12 bit MOV PROSSD 69 min
  • Super 35 5.5K (5568 x 2952) 17:09 ProRes RAW 50p 3.5 Gb/s 12 bit MOV PROSSD 41 min
  • Super 35 5.5K (5568 x 2952) 17:09 ProRes RAW 48p 3.3 Gb/s 12 bit MOV PROSSD 43 min
  • Super 35 5.5K (5568 x 2952) 17:09 ProRes RAW 29.97p 2.1 Gb/s 12 bit MOV PROSSD 69 min
  • Super 35 5.5K (5568 x 2952) 17:09 ProRes RAW 25p 1.7 Gb/s 12 bit MOV PROSSD 83 min
  • Super 35 5.5K (5568 x 2952) 17:09 ProRes RAW 24p 1.7 Gb/s 12 bit MOV PROSSD 86 min
  • Super 35 5.5K (5568 x 2952) 17:09 ProRes RAW 23.98p 1.7 Gb/s 12 bit MOV PROSSD 86 min
  • Super 35 5.5K (5568 x 2952) 17:09 CinemaDNG 50p 6.9 Gb/s 16 bit DNG PROSSD 21 min
  • Super 35 5.5K (5568 x 2952) 17:09 CinemaDNG 48p 6.6 Gb/s 16 bit DNG PROSSD 22 min
  • Super 35 5.5K (5568 x 2952) 17:09 CinemaDNG 29.97p 4.1 Gb/s 16 bit DNG PROSSD 35 min
  • Super 35 5.5K (5568 x 2952) 17:09 CinemaDNG 25p 3.4 Gb/s 16 bit DNG PROSSD 41 min
  • Super 35 5.5K (5568 x 2952) 17:09 CinemaDNG 24p 3.3 Gb/s 16 bit DNG PROSSD 43 min
  • Super 35 5.5K (5568 x 2952) 17:09 CinemaDNG 23.98p 3.3 Gb/s 16 bit DNG PROSSD 43 min

5.2K (5248 x 2952) 16:09


  • Super 35 5.2K (5248 x 2952) 16:09 ProRes RAW 59.94p 3.9 Gb/s 12 bit MOV PROSSD 73 min
  • Super 35 5.2K (5248 x 2952) 16:09 ProRes RAW 50p 3.2 Gb/s 12 bit MOV PROSSD 44 min
  • Super 35 5.2K (5248 x 2952) 16:09 ProRes RAW 48p 3.1 Gb/s 12 bit MOV PROSSD 46 min
  • Super 35 5.2K (5248 x 2952) 16:09 ProRes RAW 29.97p 1.9 Gb/s 12 bit MOV PROSSD 73 min
  • Super 35 5.2K (5248 x 2952) 16:09 ProRes RAW 25p 1.6 Gb/s 12 bit MOV PROSSD 88 min
  • Super 35 5.2K (5248 x 2952) 16:09 ProRes RAW 24p 1.6 Gb/s 12 bit MOV PROSSD 91 min
  • Super 35 5.2K (5248 x 2952) 16:09 ProRes RAW 23.98p 1.6 Gb/s 12 bit MOV PROSSD 92 min
  • Super 35 5.2K (5248 x 2952) 16:09 CinemaDNG 50p 6.5 Gb/s 16 bit DNG PROSSD 22 min
  • Super 35 5.2K (5248 x 2952) 16:09 CinemaDNG 48p 6.2 Gb/s 16 bit DNG PROSSD 23 min
  • Super 35 5.2K (5248 x 2952) 16:09 CinemaDNG 29.97p 3.9 Gb/s 16 bit DNG PROSSD 37 min
  • Super 35 5.2K (5248 x 2952) 16:09 CinemaDNG 25p 3.2 Gb/s 16 bit DNG PROSSD 44 min
  • Super 35 5.2K (5248 x 2952) 16:09 CinemaDNG 24p 3.1 Gb/s 16 bit DNG PROSSD 46 min
  • Super 35 5.2K (5248 x 2952) 16:09 CinemaDNG 23.98p 3.1 Gb/s 16 bit DNG PROSSD 46 min

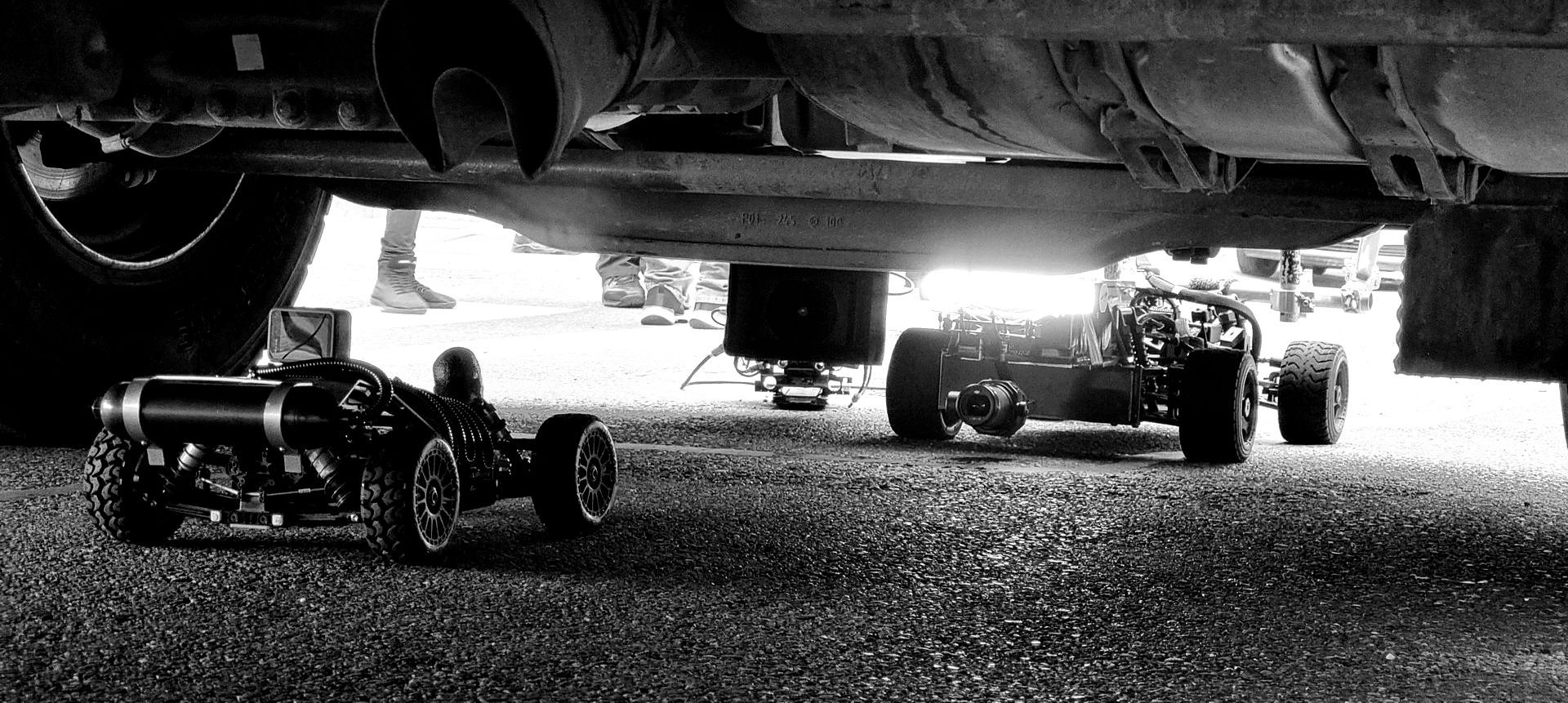

warpcam on rc car ready to shoot next scene on fast x

WarpCam® 6K PACKAGE INCLUDES

- Warpcam Body

- Sensor

- Lens Kit

- Lens Filter Kit

- Monitors

- Controllers

- Multiple Mounting Options

- Wireless Follow Focus


SENSOR

- Size (Still): 23.5×15.7 mm

- Size (Max video recording area): 23.5×12.5 mm

- Effective Pixels: 24 MP


STORAGE

- 512 GB SSD

- 1 TB SSD


OPERATION MODES

- Capture, Record, Playback


SHUTTER SPEED

- Electronic Shutter Speed: 1/8000 – 8s

- Mechanical Shutter Speed: 1/1000 – 8s (DL-S 16mm F2.8 ND ASPH not supported)


ISO RANGE

- Video: 100 – 1600 (EI mode on); 100 – 6400 (EI mode off)


LENSES

- DL Zero-D 9mm f2.8

- DL-S 16mm f2.8 ND

- DL 24mm F2.8 LS

- DL 35mm F2.8 LS

- DL 50mm F2.8 LS


VIDEO OUTPUT

- HD Video Down-link 1080p

- SDI output from Remotes (Wireless Video Compatible, for connection with production monitors or wireless down-links)


VIDEO FORMATS

- SSD: CinemaDNG, ProRes, ProRes RAW, MOV, MP4


ASPECT RATIO 17:9

- CinemaDNG: 4.5 Gbit/s RAW

- 6K: 6016×3200, 23.976/24/25/29.97/30p, 14-bit, full FOV  4.5Gbps

- 5K: 5120 x 2160, 23.976/24/25/29.97/30/48p, 14-bit, full FOV

- 4K DCI: 4096×2160, 23.976/24/25/29.97/30p, 14-bit, full FOV

- 3.9K: 3944×2088, 47.95/50/59.94, 12-bit, narrow FOV  3.9Gbps

- ProRes and ProRes RAW: 4K DCI: 4096×2160, 23.976/24/25/29.97/30p, 12-bit, HQ, full FOV  1.27Gbps

- 2K: 2048×1080, 47.95/50/59.94p, 12-bit, HQ/XQ, narrow FOV  1.2Gbps

- H.264: 4K DCI: 4096×2160, 24/25/30/48/50/59.94p 100Mbps

- H.265: 4K DCI: 4096×2160, 24/25/30p  100Mbps


ASPECT RATIO 16:9

- CinemaDNG: 4.5 Gbit/s RAW

- 6K: 5760×3240, 23.976/24/25/29.97/30p, 14-bit, full FOV  4.3Gbps

- 4K Ultra HD: 3840×2160, 23.976/24/25/29.97/30p, 14-bit, full FOV

- 3.7K: 3712×2088, 47.95/50/59.94, 14-bit, narrow FOV  3.7Gbps

- ProRes: 4K Ultra HD: 3840×2160, 23.976/24/25/29.97p, 12-bit, HQ/XQ, full FOV  2Gbps

- 2.7K: 2704×1520, 47.95/50/59.94p, 12-bit, HQ, narrow FOV  800Mbps

- FHD: 1920×1080, 47.95/50/59.94p, 12-bit, HQ/XQ, narrow FOV  1Gbps

- H.264: 4K Ultra HD: 3840×2160, 24/25/30/48/50/59.94p  100Mbps

- 2.7K: 2720×1530, 24/25/30/48/50/59.94p  100Mbps

- FHD: 1920×1080, 24/25/30/48/50/59.94p  100Mbps

- HD: 1280×720, 24/25/30/48/50/59.94p  100Mbps

- H.265: 4K Ultra HD: 3840×2160, 24/25/30p  100Mbps

- 2.7K: 2720×1530, 24/25/30/48/50/59.94p  100Mbps

- FHD: 1920×1080, 24/25/30/48/50/59.94p  100Mbps

- HD: 1280×720, 24/25/30/48/50/59.94p 100Mbps


ASPECT RATIO 2.44:1

- ProRes: 5.2K: 5280×2160, 23.976/24/25/29.97/30/50p, 12-bit, HQ, full FOV  1.3Gbps

- H.264/H.265: 4K Ultra HD: 3840×1572, 30p, full FOV  100Mbps


TEMPERATURE

- Operating Temperature Range: -4 to 100° F (-20 to 40° C)

- Storage Temperature Range: -4 to 140° F (-20 to 60° C)


SEPARATED SENSOR AND LENS STABILIZER

- Angular Vibration Range: ±0.005°

- Mount: Detachable

- Controllable Range: Tilt: +40° to -125°; Pan: ±300°; Roll: ±20°

- Mechanical Range: Tilt: +50° to -130°; Pan: ±330°; Roll: +90° to -50°

- Max Controllable Speed: Tilt: 180°/s; Roll: 180°/s; Pan: 360°/s


CAMERA FEATURES

- Exposure Mode: Auto, Manual, Shutter Priority, Aperture Priority

- Exposure Compensation: ±3.0 (3 stops of light)

- Metering: Center Weighted Metering, Spot Metering (12 × 8 area selection)

- AE Lock: Supported

- Custom: (2000 K – 10000 K)

- Video Caption: Supported (AVC/HEVC)PAL/NTSC

- Ultrasonic Dust Removal
